Rework instructions

The bug we've encountered in our first build in China is due to the voltage upconverter chip we chose. It turns out that the chip we'd used before (AP3105) behaves differently depending on which batch you get from the manufacturer, the ones we sampled in China didn't work so we chose a different chip that sometimes overheats.

This bug is only present in some of the boards that were part of the second Kickstarter shipment, all other boards, including those currently in our store do not require this change.

We have a fix that addresses the original issues with the AP3105 and undos the changes we made in China.

The fix is in 3 parts:

• replace the chip with an AP3105 (yellow below)
• replace the 910k voltage selection resistor R6 with the original 470k one (orange below)
• replace the decoupling capacitor C7 with a 4.7uF capacitor (red below)

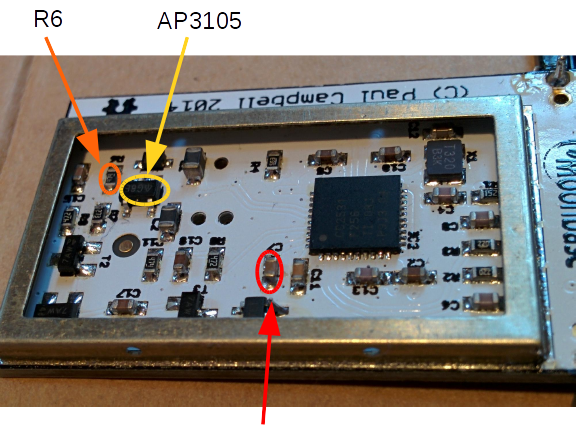

The board is shown upside down here so that we can get more light into the area that needs work - note that this image shows a board after rework
